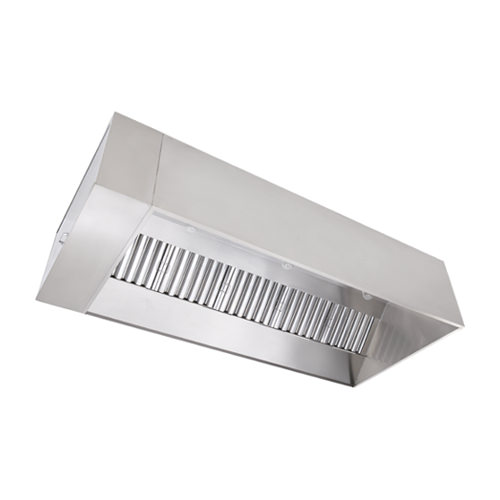

CaptiveAire ND-2 Exhaust Only Exhaust Hood

Product Description

• Exhaust Flow Rates: Superior exhaust flow rates. A 4′ hood can operate at 150 CFM/ft or 600 total CFM. Available in single or back-to-back configurations.
• ETL Listed: ETL listed for use over 450°F, 600°F and 700°F cooking surface temperatures, which provides flexibility in designing kitchen ventilation systems. ETL listed to US and Canadian safety standards, ETL sanitation listed and built in accordance with NFPA 96.
• Capture and Containment: Insulated, double-wall rigid front has aerodynamic design that reduces radiant heat into kitchen, prevents condensation and provides exceptional capture and containment of cooking vapors. This is accomplished with the signature ND-2 “mechanical baffle” on the front of the hood’s capture area and the “C-shaped” design of the hood’s capture area. Mechanical baffle provides a built-in wiring chase for optimal positioning of electrical controls and outlets on the front face of the hood without penetrating capture area or requiring external chase way.
• Convenient Design: Factory pre-wired lighting to illuminate the cooking surface is accessible from the bottom of the hood. Fitted with UL listed, pre-wired, incandescent light fixtures and tempered glass globes to hold up to a standard 100 watt bulb. Pre-punched hanging angles on each end of hood and additional set provided for hoods longer than 12′.
• Construction: Polished stainless steel on the interior and exterior of the front enhance aesthetics. Fully welded and polished front corners. Fabricated from type 430 stainless steel with option of type 304 available.
• Channels: Hood comes standard with structural channels on top and wrapper channels on the bottom.
• Reduced Weight: Rigid single wall end panels reduce weight.
• Grease Extraction: All hoods come standard with stainless steel baffle filters and a deep grease trough which allows for easy cleaning. Captrate Combo® and Captrate Solo® filters are optional. Grease drain system with removable 1/2 pint cup for easy cleaning. Standard filter stops eliminate gaps between filters.
• Reduced Lead Times and Shipping Costs: Produced on a high volume assembly line at one of five manufacturing facilities to reduce lead times and shipping costs.
• Clearance to Combustibles: Standard built in 3″ rear standoff to meet NFPA 96 requirements, when installed in a wall application.
• Controls: Hoods can be equipped with modular utility cabinets and end standoffs. Optional listed light and fan control switches flush mounted and pre-wired through electrical chase way.
