- Construction – Welded & riveted double wall, insulated cabinet construction with cabinet welded to base.
- Cabinet Material – All aluminum interior and exterior double wall, insulated construction; .063 aluminum exterior with 2V finish.
- Base Frame – 125 natural aluminum.
- Casters – 5” diameter casters with rubber tread. Four swivel casters. Two casters fitted with brakes.
- Door – Single panel tempered glass door set in extruded black anodized aluminum frame. Field reversible. Full width aluminum drip trough with 1/2” drain located at base of door. Removable plastic catch pan mounted under base of cabinet. High temperature santoprene gasket mounted to door.
- Hinges – Adjustable edge mount hinges with chrome plate finish.
- Latch – Heavy-duty edge mount latch with magnetic catch.
- Insulation – 1” thick high density continuous wrap-around insulation in sides and top.
- Tray Rack Assembly – Universal wire slides at fixed spacing of 3”. Assemblies removable. Hold 18”x26” sheet pans, 12”x20” steam table pans, 2/1 or 1/2 G/N pans.
- Thermometer – Digital thermometer with remote sensing bulb and sensing bulb protector. Displays temperature in one degree increments.
- Controls – Single dial for heat setting.
- Water Reservoir – Bottom mounted stainless steel water reservoir is part of heater assembly. Passive evaporative humidification provided. Manual fill. Capacity 2.5 quarts.
- Heating System – Bottom mounted heater with one 1700 watt coiled incoloysheathed heating element. High impedence protected fan motor. Blower fan circulates air. Full range thermostat and on/off switch with power indicating light. Dial control for heat settings.
- Electrical Characteristics – Operates on 120 volts, 60 cycle, single phase, 1750 watts, 15 amps. Eight foot rubber cord with 3 prong grounding plug. NEMA 5-20P. See low wattage options below.
- Performance – Capable of heating to 190 O F (88 O C). Preheat to 160 O F (71 O C) in approximately 30 minutes. Low wattage options will affect cabinet performance.

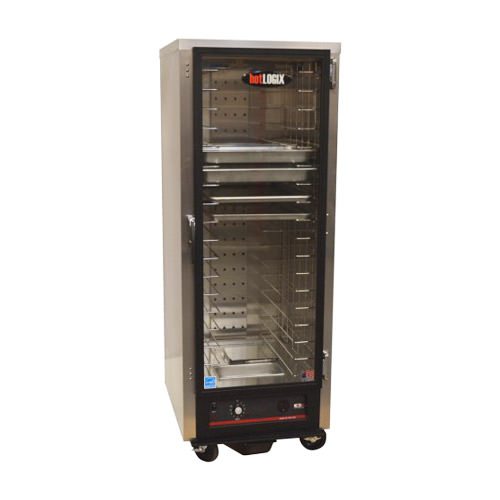

EFI HCGD-18 18 Pan Capacity Holding Cabinet
$ 3,384.00
